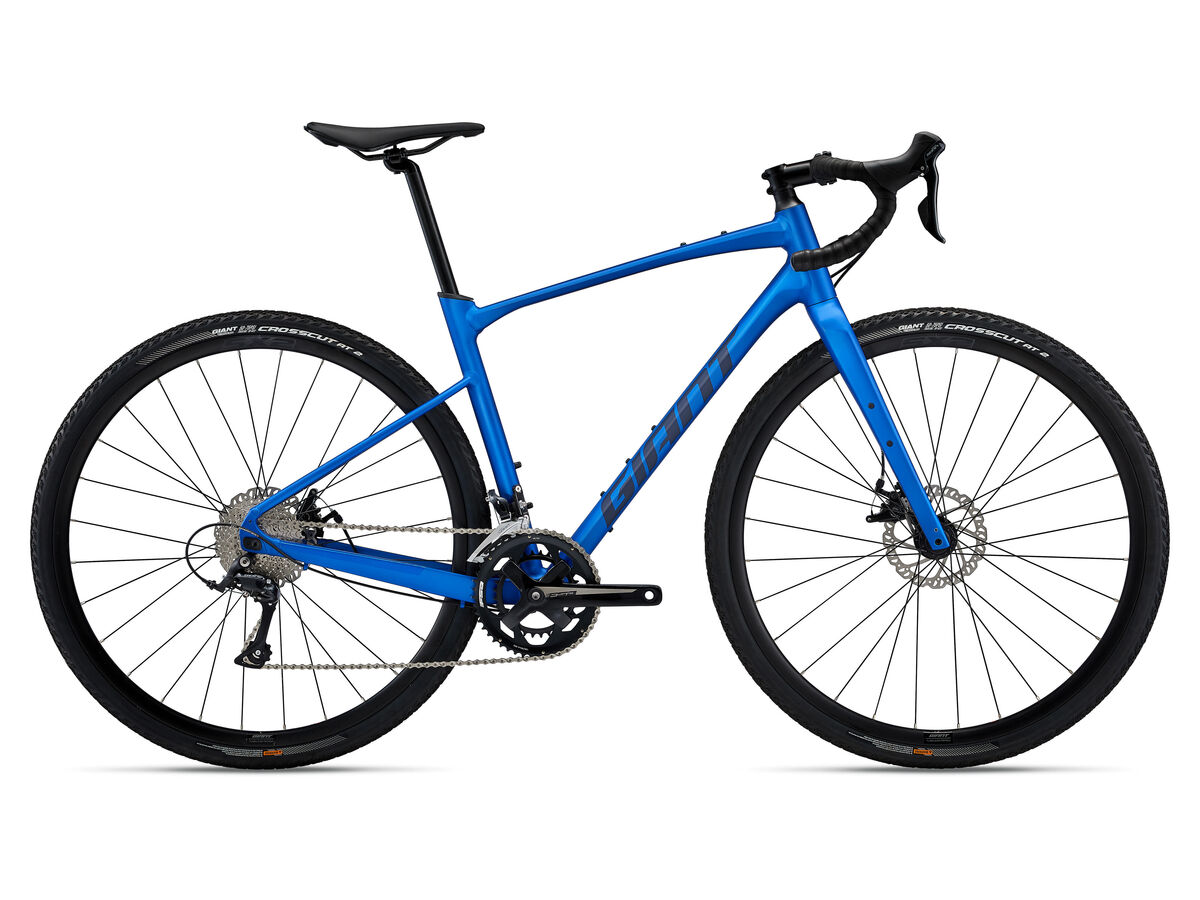

GIANT Revolt 2 2022
|Description||Ride roads, gravel or dirt with this all-new aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.ALUXX SL Aluminium Technology - This High-Performance level, state-of-the-art aluminium material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for high-performance ride quality.
OverDrive - Giant's original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system's oversized headset bearings (1 1/4" lower and 1 1/8" upper for road, 1 1/2" lower and 1 1/8" upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System - Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant's Tubeless System makes it easier than ever to experience all these benefits.
D-Fuse Seatpost - The proprietary " D" shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
Flip Chip - Dropout - Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
Specifications:Sizes S, M, M/L, L, XL
Frame ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar Giant Contact XR Ergo-Control, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips Velo cork tape with gel
Stem Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse, alloy, 14mm offset
Saddle Giant Approach
Pedals PEDALS NOT SUPPLIED
Shifters Shimano Sora, 2x9
Front Derailleur Shimano Sora
Rear Derailleur Shimano Sora, long cage
Brakes Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers Shimano Sora
Cassette Shimano HG400, 11x34
Chain KMC X9 with Missing Link
Crankset FSA Vero Pro, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket FSA BSA cartridge
Rims Giant S-X2 Disc wheelset
Hubs Giant S-X2 Disc wheelset
Spokes Giant S-X2 Disc wheelset
Tyres Giant CrossCut AT 2, 700x38c, tubeless
Extras Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 42mm max tire size in "short" flip chip position
Fender/Chainguard Compatible with RGX 45 fender (sold separately)
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please call shop on 01786 465 292 to confirm availability of display model and stock availability before travelling.
